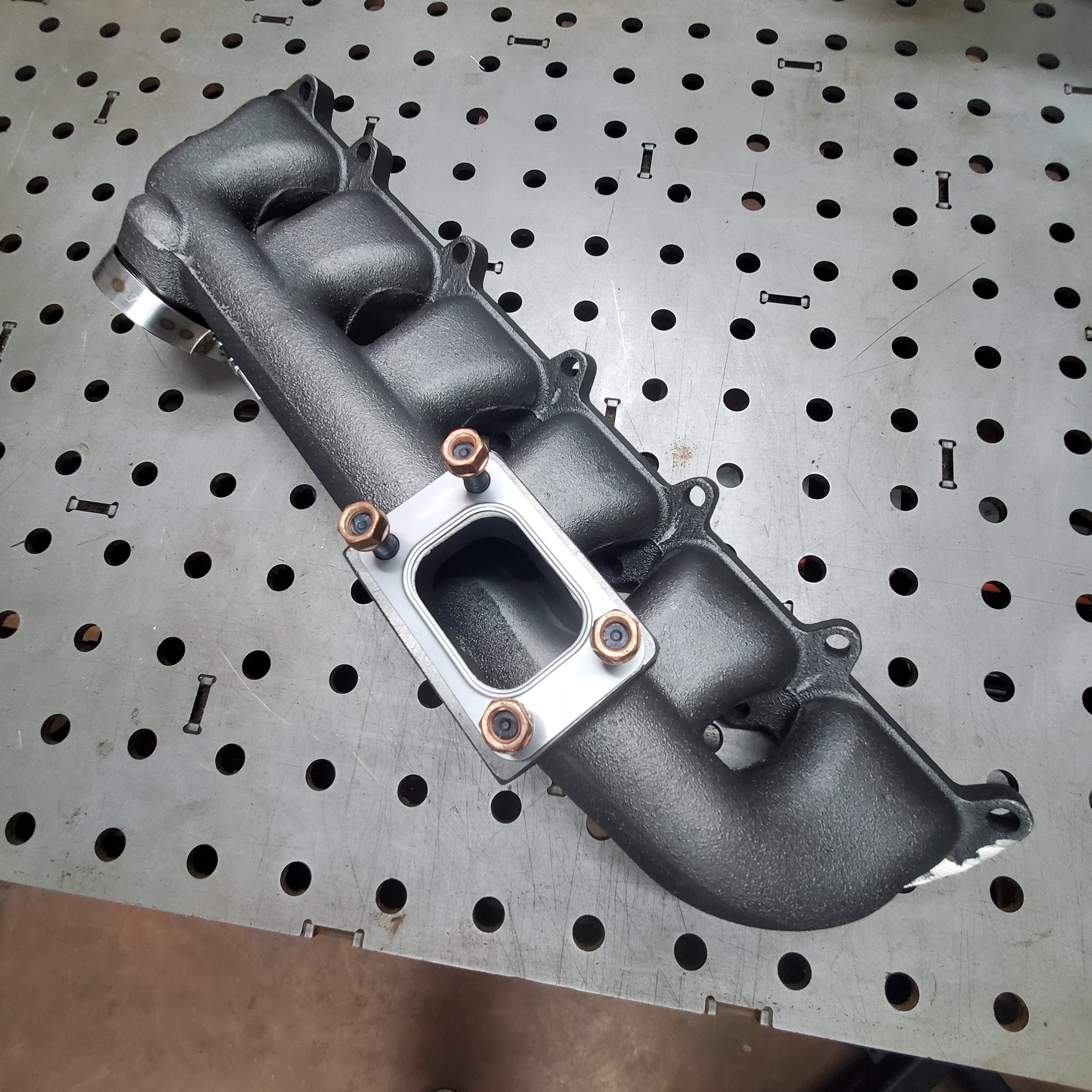

Finally, an om606 turbo manifold that won't break the bank! Our manifold was designed with the BorgWarner s257, .63 T3 housing, and Turbosmart CompGate 40 in mind but it will be more than adequate for the Holset T3 turbos as well. Our engineer delivered a great design keeping the manifold tucked close to the engine while still opening up the runners allowing for great flow.
Planning on running a turbo with a built-in wastegate ... say an HX35/8cm? No problem, a Turbosmart clamp and plug to block off the built-in port are included. A manifold gasket is not included.
Due to weight, demand, and logistics, there are no returns on manifolds, so please watch the following videos for a glimpse into fitment as every swap is different. If you want to double-check turbo fitment before you commit, you can borrow a test flange (click).
Features:
- CompGate 40 wastegate port
- T3 turbine flange

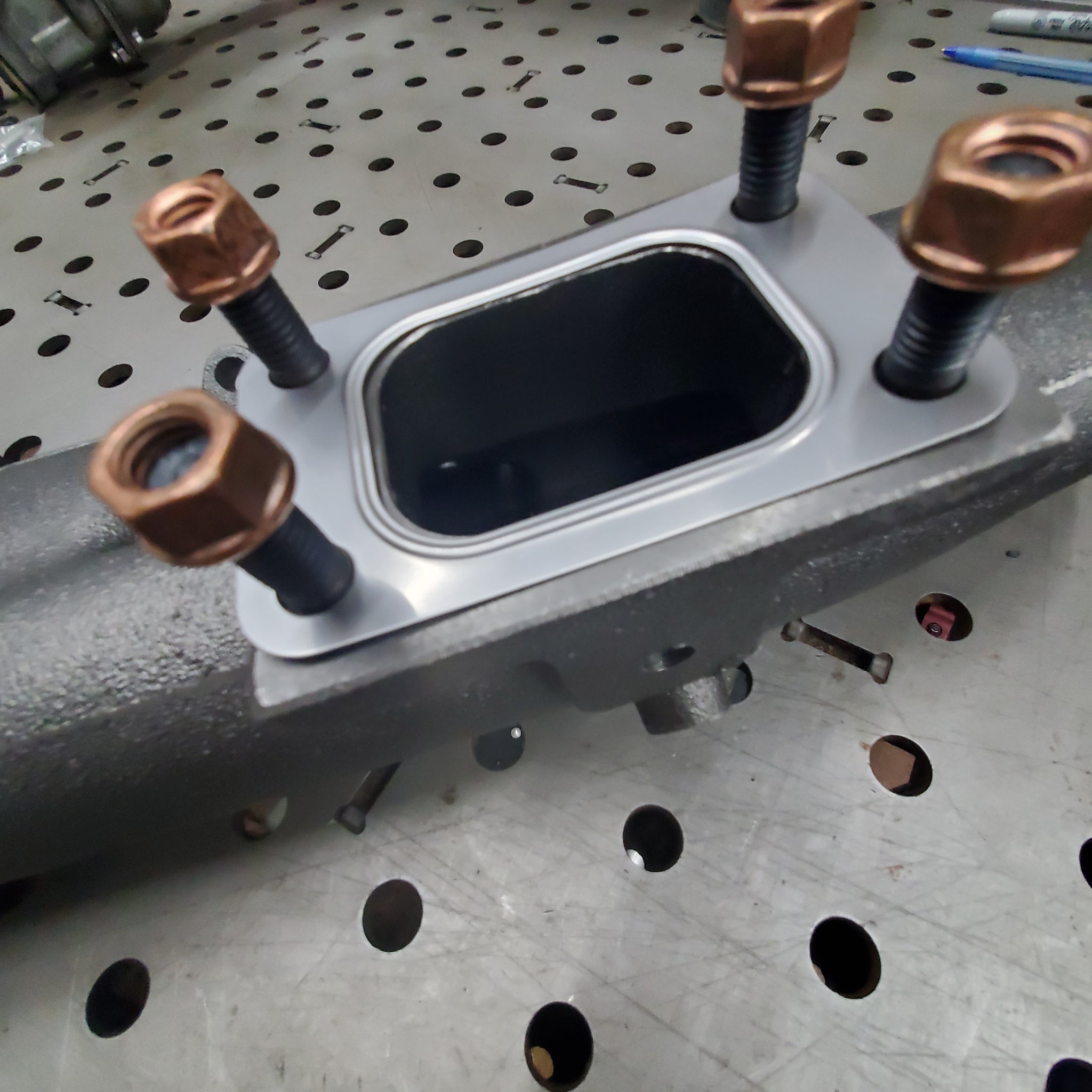

- 4 x M10x1.5 studs and copper lock nuts
- 1/8"-27 EGT probe port
- Bung for additional support if required (for large turbos like the HE400 or HX40)

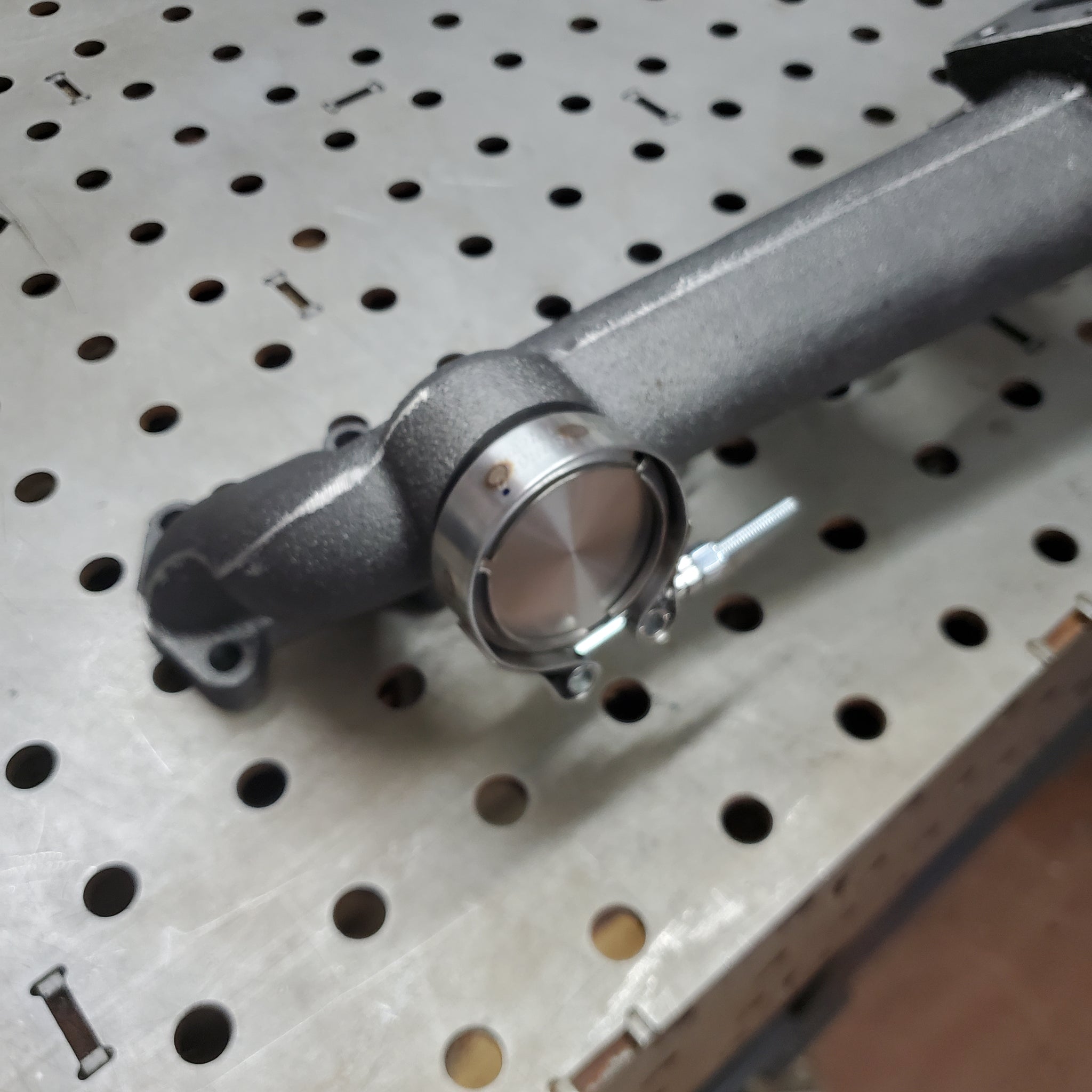

- Turbosmart clamp and wastegate block off plate included
