Mercedes 90/100mm Transmission Driveshaft Adapter

Please measure your flange before ordering.

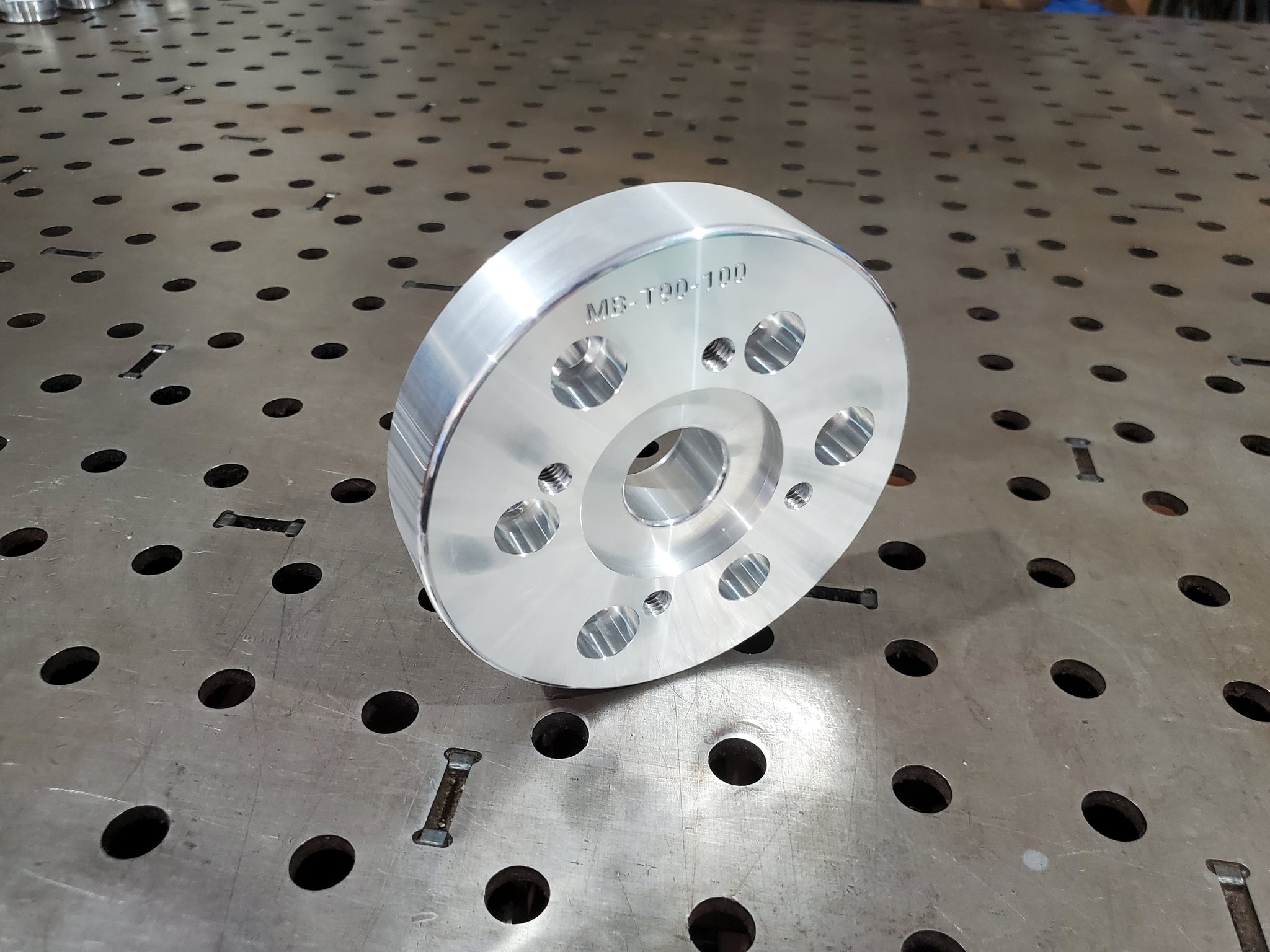

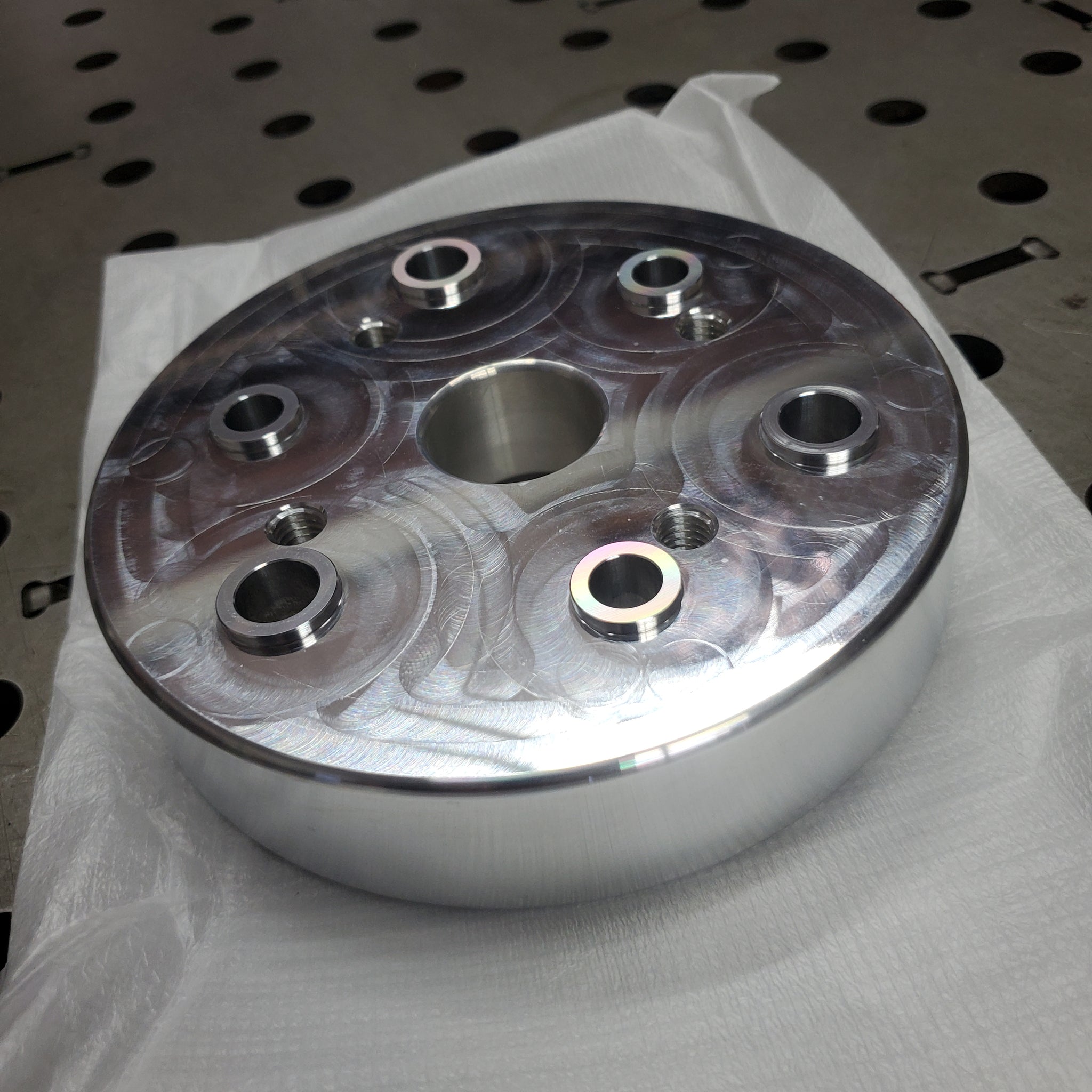

Now you can run a conventional driveshaft with your Mercedes transmission or differential!  This adapter accommodates the depth of most transmission output shafts and is made for either a 90mm or 100mm diameter 3-bolt flange pattern.   The Spicer flange is not included.

Included:

  • Driveshaft adapter
    • 90 and 100mm 3 bolt patterns supported
    • The flange depth is 31.75mm face to face
    • Locating pin depth is 2.25mm
    • Made from 6061 aluminum
    • Works in conjunction with a Dana Spicer flange, part # 2-2-329 and 1310 U-joint (not included)
  • 3 x M12X1.75 x 45mm Coarse Allen socket 12.9 bolts (100mm pattern)
  • 3 x M8X1.75 x 45mm Coarse Allen socket 12.9 bolts (90mm pattern)
  • Conical lock flange nuts
