Please measure your flange before ordering.

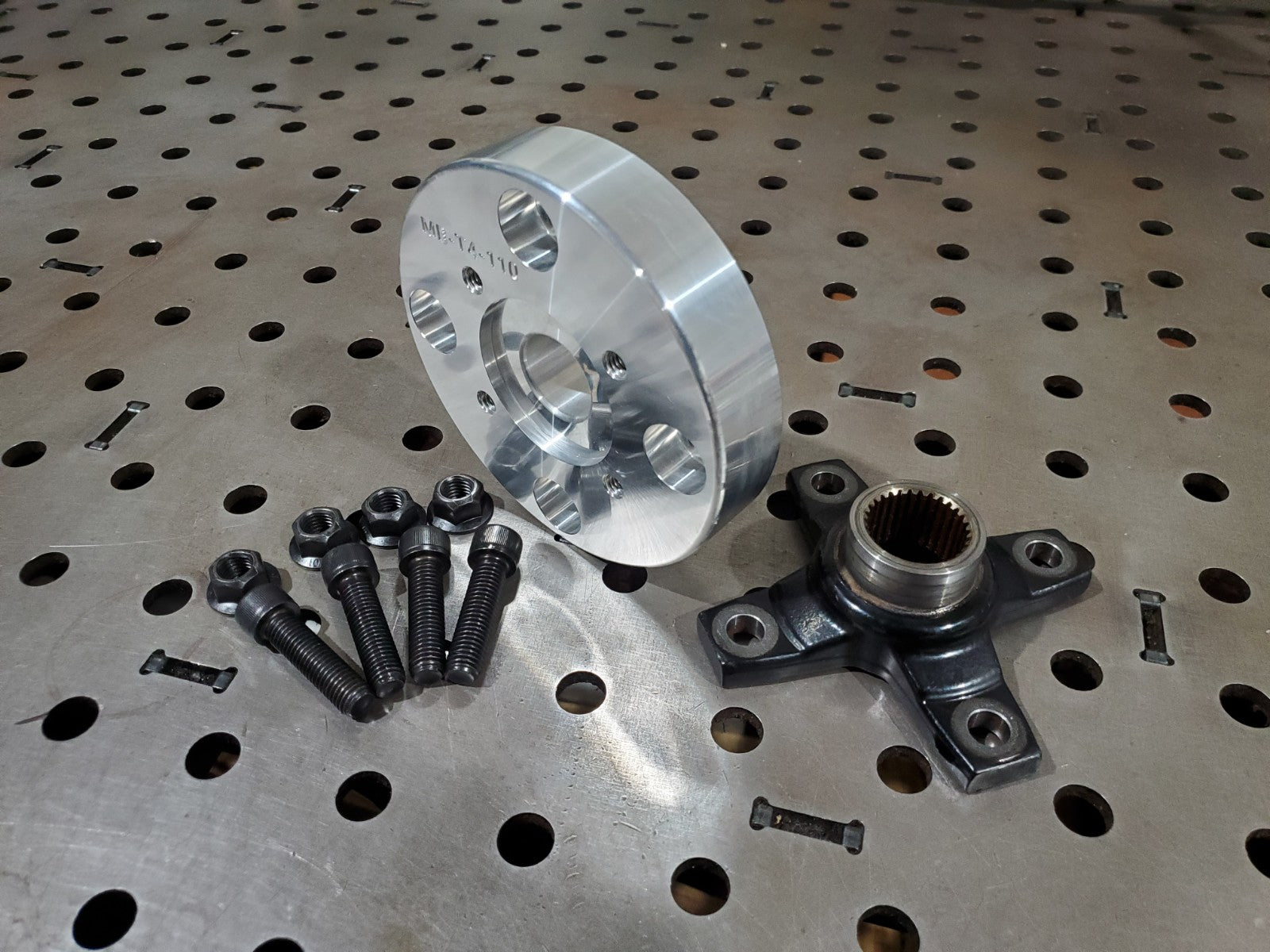

These will accommodate the 722.6, 4-bolt flange and allow you to run a conventional driveshaft. The Spicer flange is not included.
- Driveshaft adapter
- 4 bolt patterns supported
- Thickness is 31.75mm from face to face
- Locating pin depth is 2.25mm
- Made from 6061 aluminum
- Works in conjunction with a Dana Spicer flange, part # 2-2-329 and 1310 U-joint
- 4 x M12X1.75 x 45mm Coarse Allen socket 12.9 bolts
- 4 x M12 Conical lock flange nuts
