Please measure your flange before ordering.

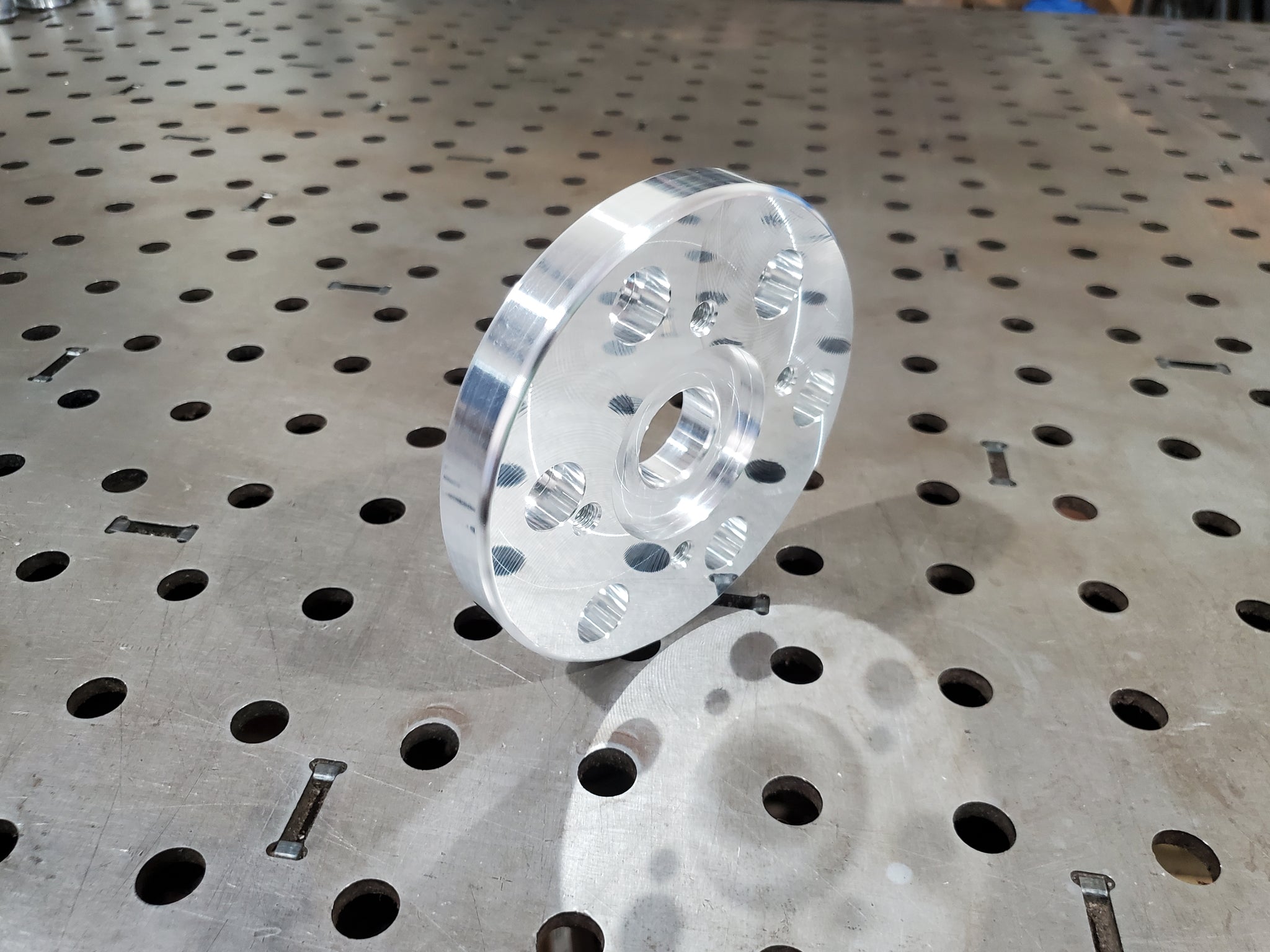

Totally redesigned and better than ever. These will accommodate both 110 mm and 100 mm Mercedes flanges and allow you to run a conventional driveshaft. The Spicer flange is not included.
- Driveshaft adapter
- 100 and 110mm bolt patterns supported
- Flange depth is 20mm face to face
- Locating pin depth is 2.25mm
- Made from 6061 aluminum
Works in conjunction with a Dana Spicer flange, part # 2-2-329 and 1310 U-joint
- 3 x M12X1.75 x 45mm Coarse Allen socket 12.9 bolts
3 x M12 Conical lock flange nuts
