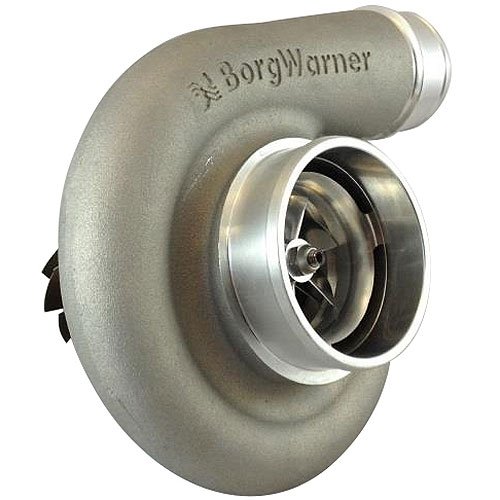

BorgWarner SuperCore Assembly SX-E S300SX-E 8780
- 60-degree thrust bearing
- Integrated speed sensor port
- Forged milled compressor wheel
- Flexible compressor cover outlet options
- Pre-machined boost port
- Optimized compressor stage aerodynamics
Not included with turbo assemblies: Speed sensor, Turbine outlet V-Band, Drain port fitting
Super-Core Part # | Comp. Wheel O.D. (in) | Comp. Wheel O.D. (mm) | Comp Wheel Inducer Dia. (in) | Comp Wheel Inducer Dia. (mm) | Turbine Wheel O.D. (in) | Turbine Wheel O.D. (mm) | Turbine Wheel Exducer (in) | Turbine Wheel Exducer (mm) | Service Kit (360° thrust bearing) |
13009097056 | 3.29 | 83.47 | 2.42 | 61.44 | 3.00 | 76.20 | 2.66 | 67.56 | 13007110005 |
13009097053 | 3.29 | 83.47 | 2.42 | 61.44 | 3.14 | 79.76 | 2.89 | 73.37 | 13007110005 |
13009097006 | 3.44 | 87.37 | 2.48 | 62.99 | 3.00 | 76.20 | 2.66 | 67.56 | 13007110005 |
13009097047 | 3.44 | 87.37 | 2.48 | 62.99 | 3.14 | 79.76 | 2.89 | 73.37 | 13007110005 |
13009097008 | 3.44 | 87.37 | 2.54 | 64.47 | 3.00 | 76.20 | 2.66 | 67.56 | 13007110005 |
13009097055 | 3.44 | 87.37 | 2.54 | 64.47 | 3.14 | 79.76 | 2.89 | 73.37 | 13007110005 |
13009097049 | 3.60 | 91.44 | 2.60 | 66.11 | 3.14 | 79.76 | 2.89 | 73.37 | 13007110005 |
13009097051 | 3.60 | 91.44 | 2.72 | 69.00 | 3.14 | 79.76 | 2.89 | 73.37 | 13007110005 |
13009095091 | 3.58 | 91.00 | 2.83 | 72.00 | 3.14 | 79.76 | 2.89 | 73.37 |
Turbine Housings (T4):
Part # | A/R | Inlet Configuration | Notes |
177211 | 0.88 | Volute, Open Flow | 80mm Turbine Wheel |
177208 | 0.91 | Volute, Twin Flow | 80mm Turbine Wheel |
179905 | 1.00 | Volute, Twin Flow | 80mm Turbine Wheel |
177210 | 0.88 | Volute, Open Flow | 76mm Turbine Wheel |
177207 | 0.91 | Volute, Twin Flow | 76mm Turbine Wheel |
177209 | 1.00 | Volute, Twin Flow | 76mm Turbine Wheel |
